Knife Gate Valve
The SPC Double Window Sight Glass enables visual process monitoring without system interruption. With dual reinforced viewing windows, operators can observe fluid properties in real-time, combining safety and optical clarity for chemical, pharmaceutical, and food processing operations.
Unidirectional Knife Gate Valve
Bi-directional Wafer Style Knife Gate Valve
On-Off & Control Knife Gate Valve
Knife Gate Valve

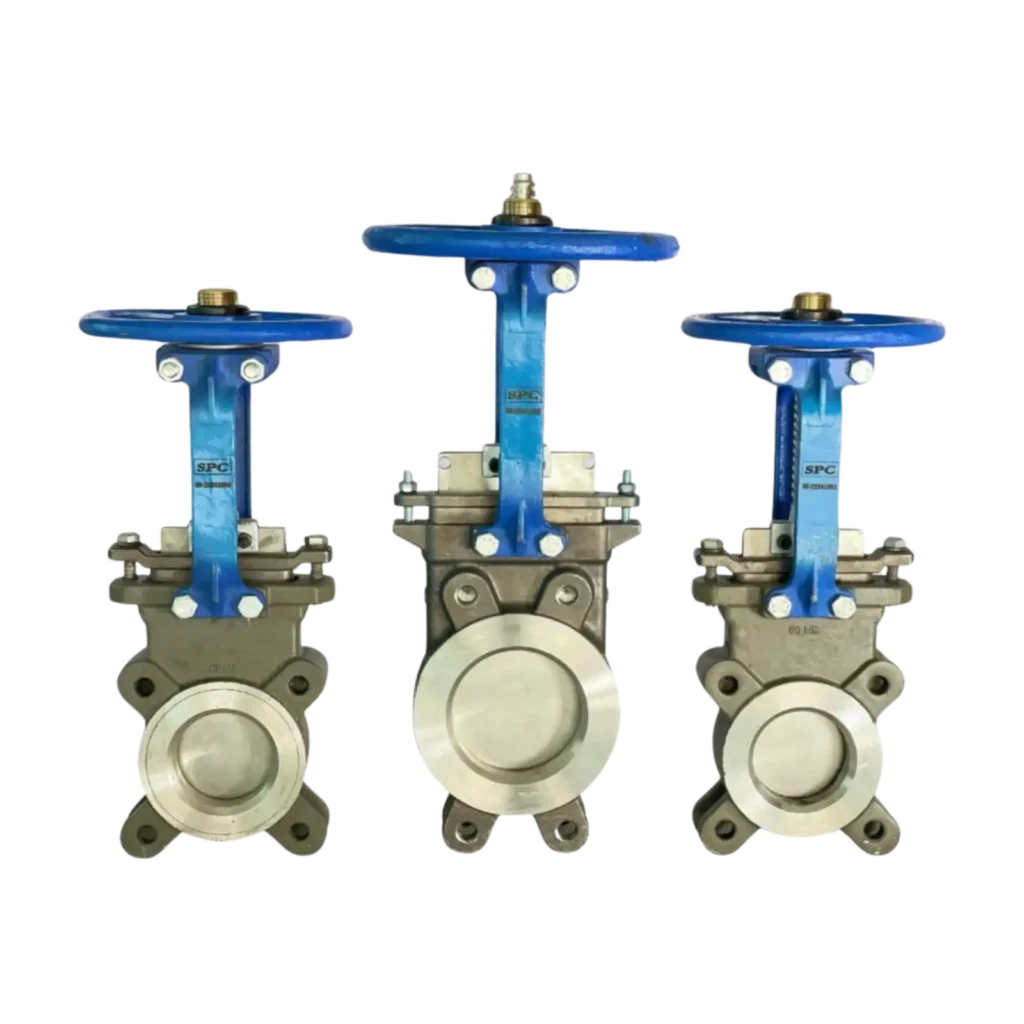

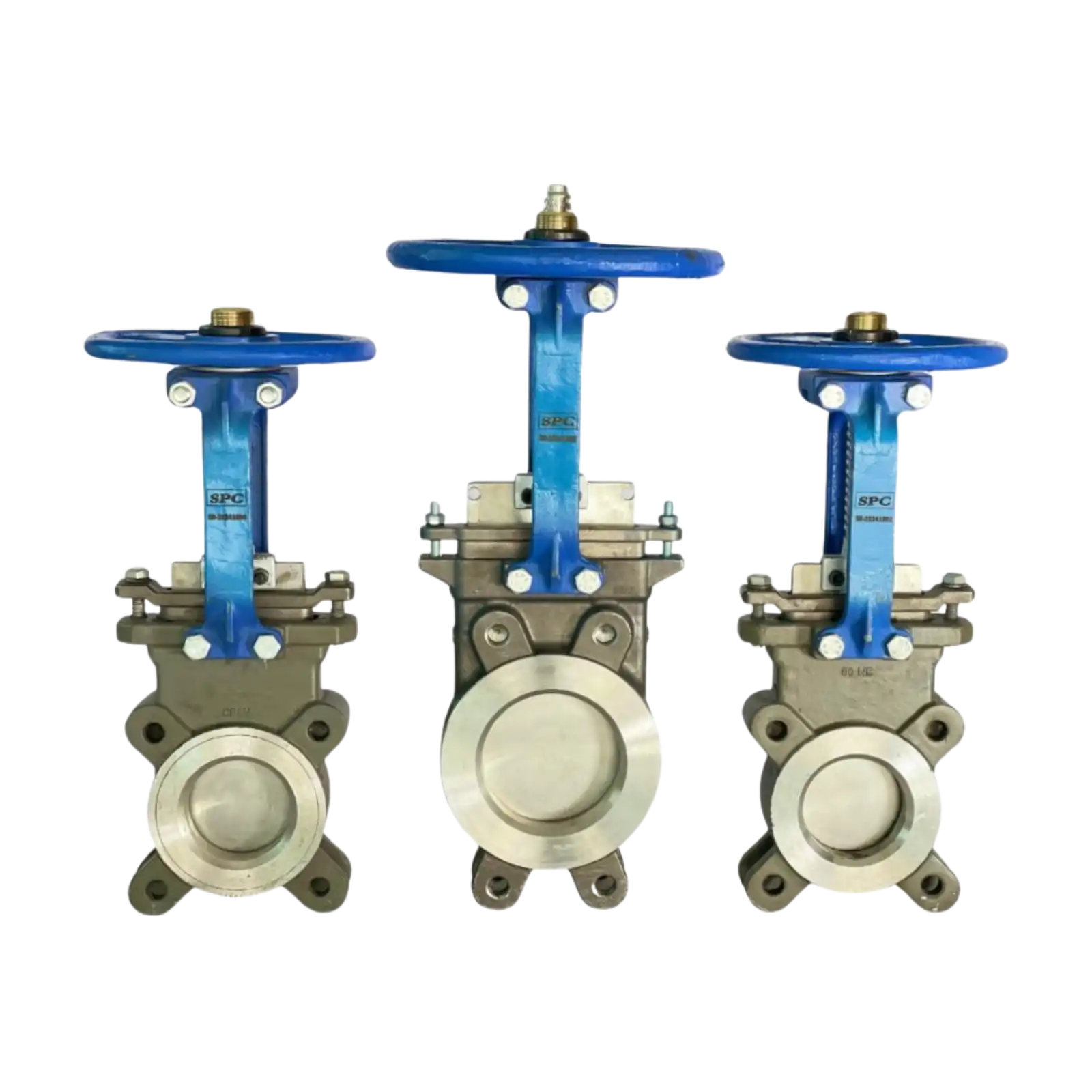

Unidirectional Knife Gate Valve
Wafer and lug type knife gate valve for installation between flanges acc. to EN 1092-1 / PN 10. Two-piece body, unidirectional tight shutoff. Metal guided plate, locked when closed. Self-adjusting COMPACT cross seal, no necessity for gland packing – maintenance-free. Self-cleaning flush-out corners with cutting edge in the lower body area.
- Sizes DN 50 – DN 600
- Face-to-face dimension according to EN 558-1 line 20 (DIN 3202 K1)
- Body Carbon Steel (WCB), CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel, SAF 2205 Duplex, SAF 2507 Duplex
- Plate Carbon Steel (WCB), CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel, SAF 2205 Duplex, SAF 2507 Duplex
- Sealings NBR (EPDM, FPM, PTFE, ceramic fibre etc.)
Bi-directional Wafer Style Knife Gate Valve
Knife Gate Valve
Knife gate is a through-conduit wafer valve designed for media with high consistency. The double-seat design assures a non-clogging shut-off on either normal or reverse flow. The valve is used in a wide range of demanding applications in industries such as:
- Sizes – DN 50 – DN 600
- Mounting flanges – DIN EN 1092-1, PN 10, ANSI 150
- Body material – Cast iron GG 25, Carbon Steel (WCB), CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel, SAF 2205 Duplex, SAF 2507 Duplex
- Plate – Carbon Steel (WCB), CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel, SAF 2205 Duplex, SAF 2507 Duplex
- Drive types – Handwheel, hand lever, chain wheel, worm and bevel gears, pneumatic, hydraulic cylinders, electric rotary actuators

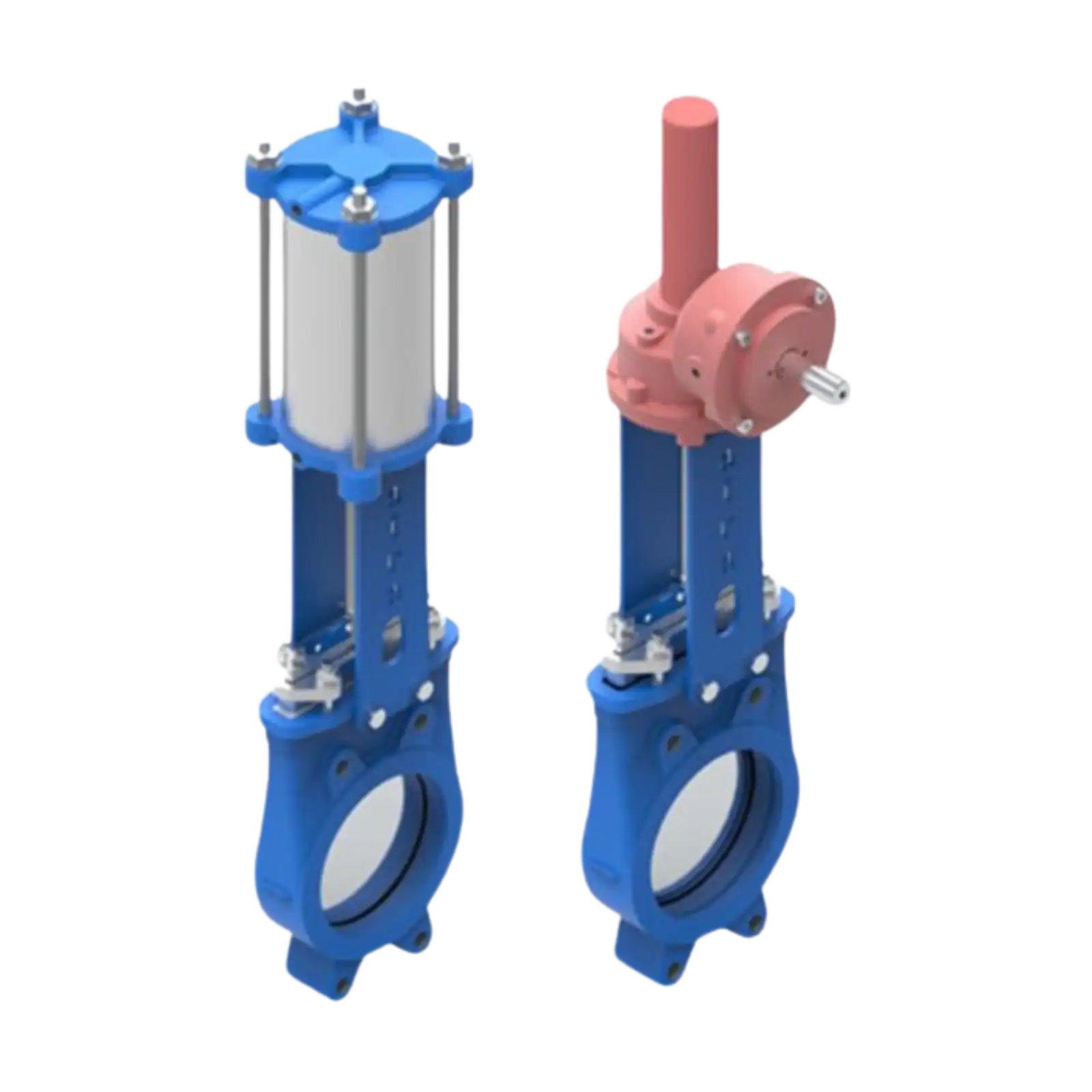

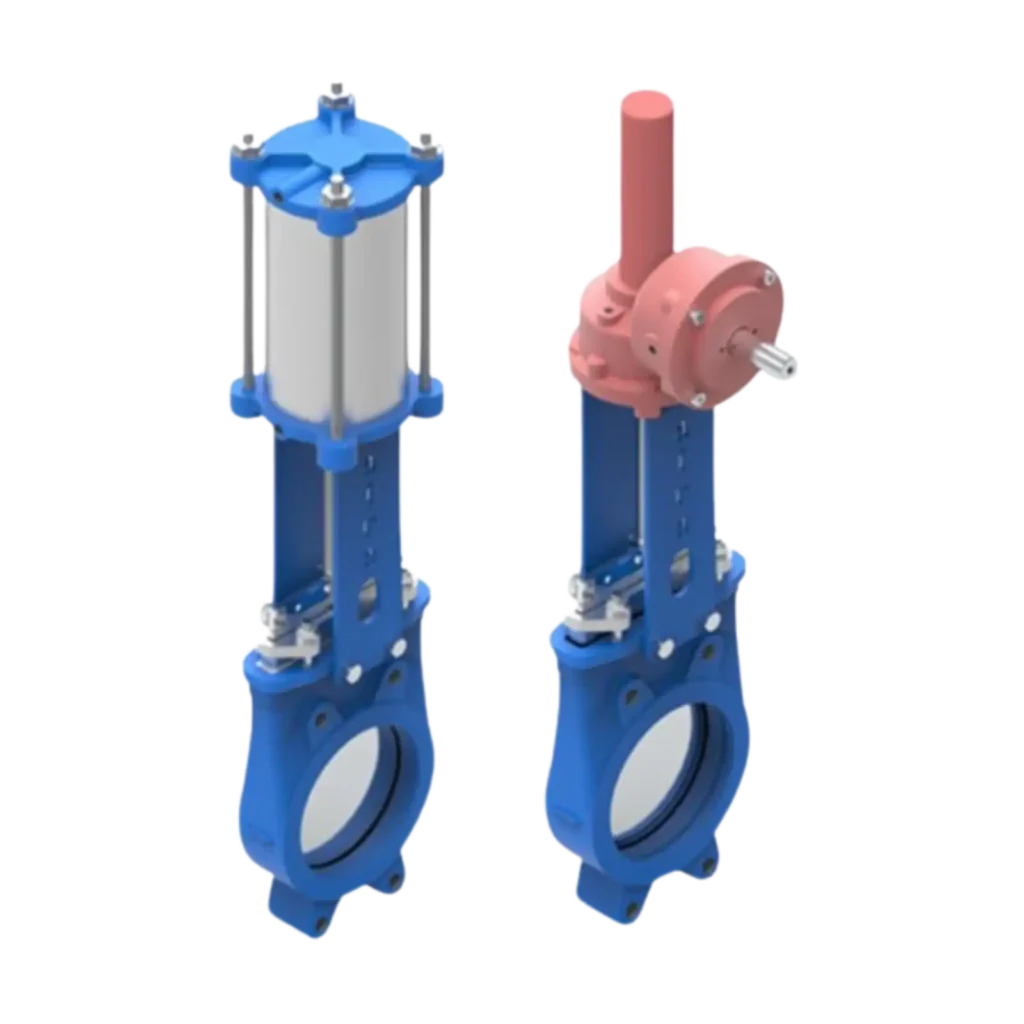

On-Off & Control Knife Gate Valve
Knife Gate Valve
Control knife gate valve with optimised control plate designed for precise air volume control with an almost linear control function, e.g. for ventilation tasks in sewage installation plants. Lug-type knife gate valve for installation between flanges acc. to EN 1092-1 / PN 10. Also suitable for dead-end service. Two-piece body, bidirectional tight shutoff. Metal guided plate, locked when closed. Self-adjusting COMPACT cross seal, no necessity for gland packing – maintenance-free.
- Sizes – DN 50 – DN 1200
- Mounting flanges – DIN EN 1092-1, PN 10, ANSI 150
- Body material – Cast iron GG 25, Carbon Steel (WCB), CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel, SAF 2205 Duplex, SAF 2507 Duplex
- Plate – Carbon Steel (WCB), CF8 Stainless Steel, CF8M Stainless Steel, CF3M Stainless Steel, SAF 2205 Duplex, SAF 2507 Duplex
- Drive types – Handwheel, hand lever, chain wheel, worm and bevel gears, pneumatic, hydraulic cylinders, electric rotary actuators
